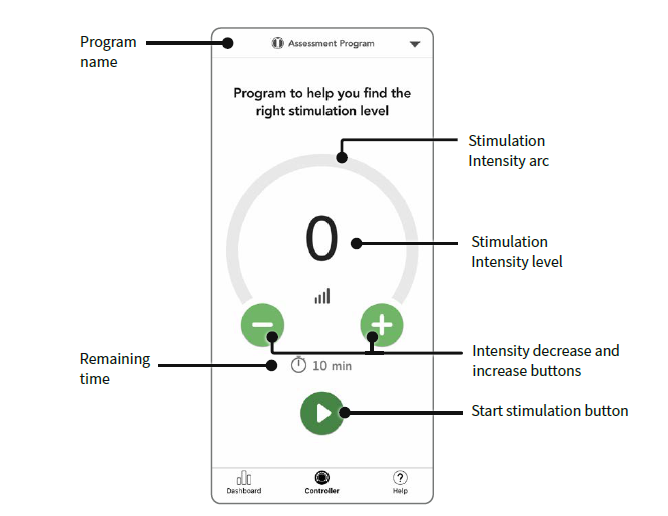

Introducing the Controller Screen

Program selection
The Programs are automatically selected as part of your suggested Therapy Plan. The program name is always displayed at the top of the Controller screen.

You can manually choose your Program by tapping the Program name when no stimulation is running.

Adjusting the stimulation intensity
Tap the large green minus or plus buttons to manually decrease or increase the intensity in single units to a comfortable level. The intensity level is indicated by the coloured intensity level indicator on the arc and the large number inside the arc.

To quickly decrease or increase the intensity, tap and hold minus or plus.

When using the foot-pads you will be guided to the right intensity by indications and messages that appear on the screen. The intensity arc will also turn from orange to green when sufficient rocking movement is achieved.

When using the Electrode Pads use at an intensity that provides you with strong but comfortable
muscle contractions.

If you feel pain or discomfort: Lower the intensity of the foot/electrode pads using the intensity controls on the controller screen or the device.

Pausing stimulation
Tap pause or remove your feet from the foot-pads.

When paused, the time display blinks in the app and on Revitive.

During a pause, you may reduce but not increase the intensity level.

Note that if paused for 10 minutes, the stimulation session ends and Revitive powers off. You will hear three beeps when your Revitive switches off.

Resuming stimulation
Place both feet back on the pads and tap play in the app to resume stimulation (or tap the button on
Revitive).

You can tap stop to stop the stimulation session.
